BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX)
BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX)
Portable Hydraulic Power • Honda GX390 Engine • Built for Demanding Job Sites
The BravePro Hydra Buddy HBHR350GX is a portable hydraulic power pack built for demanding applications where electrical power or compressed air is not available. Powered by a dependable Honda GX390 commercial engine, this unit delivers the hydraulic performance needed for a wide range of field, trailer, and remote job site applications.
Designed for portability and convenience, the HBHR350GX comes equipped with a standard control valve, quick disconnect couplings, and a large hydraulic oil tank with a built-in sight and temperature gauge for easy monitoring. Compatible with both single-acting and double-acting cylinders, this power pack is a versatile solution for contractors, equipment users, and mobile hydraulic applications that require reliable standalone hydraulic power.
Key Features & Benefits
-
Honda GX390 Commercial Engine
Reliable 390cc Honda engine delivers proven performance for demanding hydraulic jobs. -
Portable Remote Hydraulic Power
Built for job sites where power or air is not available. -
Compatible with Single- or Double-Acting Cylinders
Flexible design supports a wide range of hydraulic applications. -
Standard Control Valve with Quick Disconnect Couplings
Makes setup faster and more convenient in the field. -

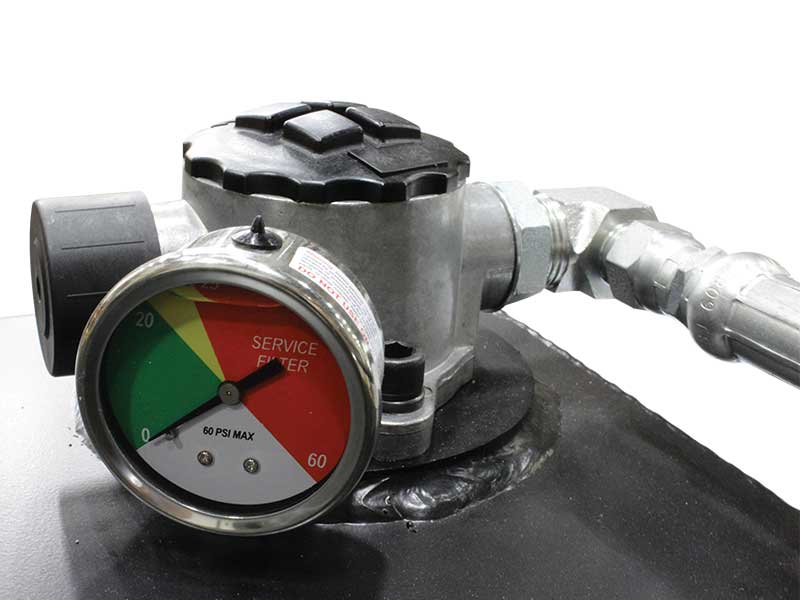

Zinga In-Tank Hydraulic Filter with Indicator
Helps simplify maintenance and monitor filter condition. -
Built-In System Relief Valve
Helps protect hydraulic components and support safe operation. -
Large Hydraulic Oil Tank
Generous tank capacity supports longer run times and dependable hydraulic performance. -

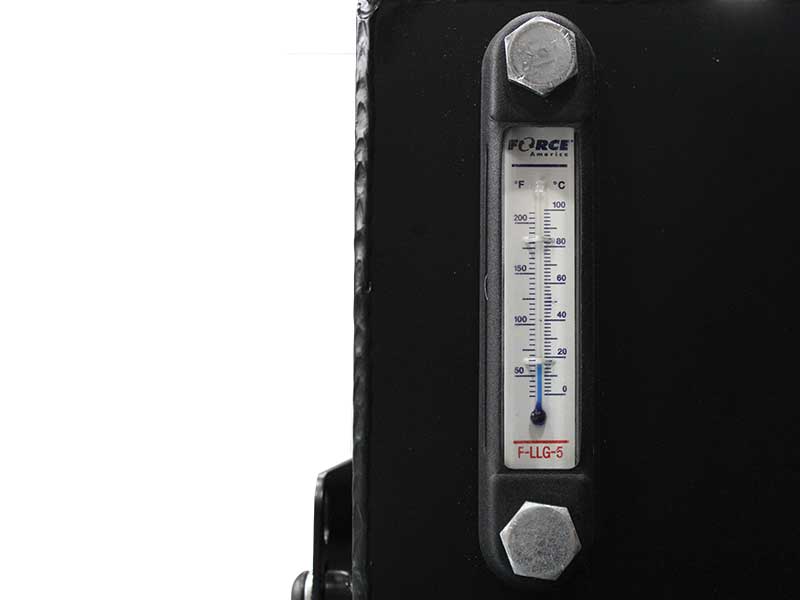

Sight / Temperature Gauge
Makes it easy to check hydraulic fluid condition at a glance. -
Heavy-Duty Steel Tank Construction
Built with 12-gauge steel for long-term durability. -
Free Standard Ground Shipping
Added value on a professional-grade hydraulic power unit.
Optional Rush Processing
For in-stock items, Rush Processing is available and guarantees shipment as fast as same day or by the next business day excluding holidays. Tracking information is emailed once the order is processed. If the order does not ship by the next business day, the rush processing fee is not charged.
Quick Specs
| Specification | Details |
|---|---|
| Model | HBHR350GX |
| Shipping | Free Standard Ground Shipping |
| Engine | Honda GX390 / 390cc |
| Start Type | Recoil |
| Flow Rate | 7 GPM |
| Pump Displacement | .51 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORB / Outlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Hydraulic Tank Volume | Nominal: 15 gal. / Actual: 13.6 gal. / Useable: 10.3 gal. |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Drain Port | 1/2" NPT |
| Hydraulic Valve Pressure | 2,000 PSI |
| Hydraulic Valve Type | 3-Position, 4-Way Spring-to-Center Direction Control Valve with Integral Adjustable Main Relief Valve |
| Hydraulic Valve Connections | Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed |
| Dry Weight | 198 lbs. |
| Dimensions (L x W x H) | 44" x 24.5" x 20" |
| Warranty | 2 Years |
Ideal For
- Remote hydraulic applications
- Job sites without air or electrical power
- Single-acting cylinder operation
- Double-acting cylinder operation
- Trailer-mounted or field hydraulic systems
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
