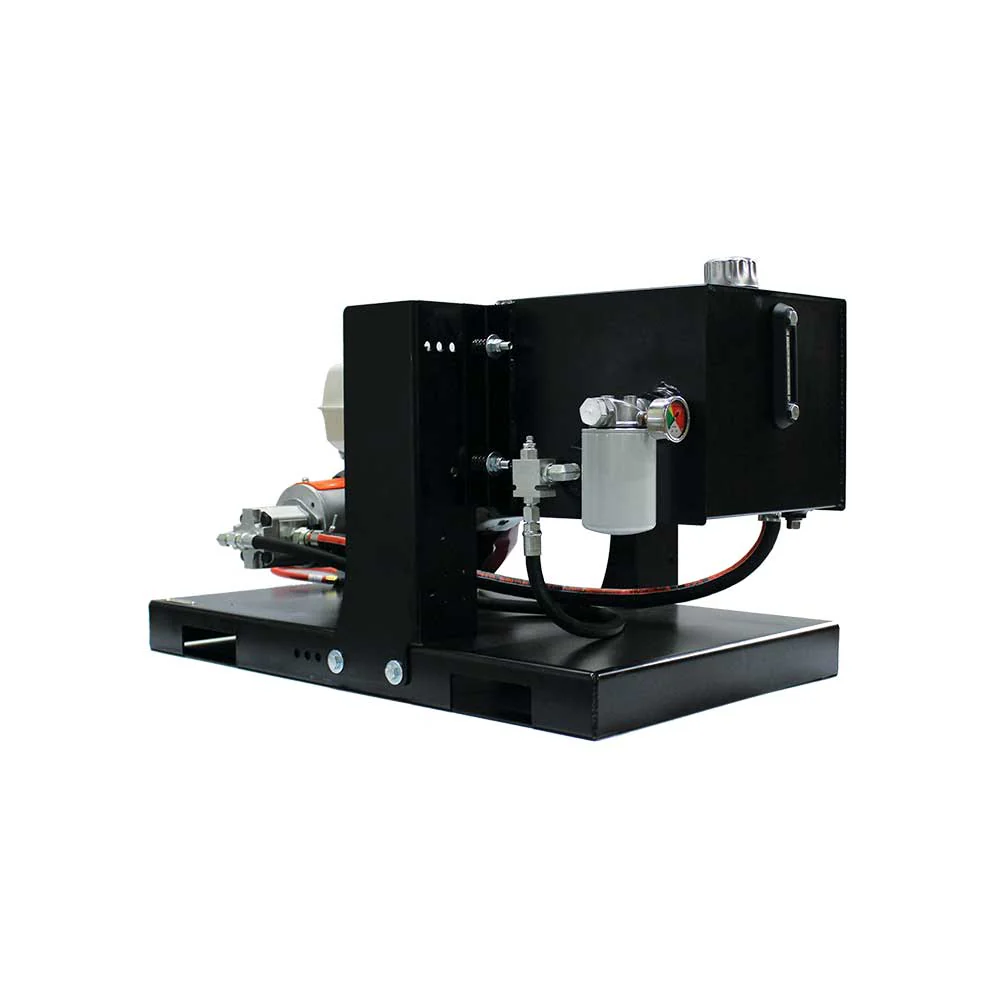

BravePro Hydra Buddy Electric Start Honda Skid-Mount Hydraulic Power Pack (HBHS300GXE)
BravePro Hydra Buddy Electric Start Honda Skid-Mount Hydraulic Power Pack (HBHS300GXE)
Portable Hydraulic Power ā¢ Honda GX390 Engine ā¢ Skid-Mount Jobsite Design
The BravePro Hydra Buddy HBHS300GXE is a heavy-duty skid-mount hydraulic power pack built for demanding applications where electrical power or compressed air is not available. Designed to mount securely to a trailer or custom setup, this unit provides dependable, self-contained hydraulic power for a wide range of field and jobsite applications.
Powered by a Honda GX390 commercial engine, the HBHS300GXE is compatible with both single-acting and double-acting cylinders, making it a versatile solution for contractors, equipment operators, and mobile hydraulic systems. Its spin-on hydraulic return filter, system relief valve, large hydraulic tank, and forklift-accessible skid design help make it both durable and practical for everyday use.
Key Features & Benefits
-
Honda GX390 Commercial Engine
Reliable 390cc Honda power delivers dependable hydraulic performance for demanding jobsite use. -
Skid-Mount Design
Mounts securely to a trailer or other application for portable hydraulic power where air or electricity is not available. -
Compatible with Single- or Double-Acting Cylinders
Flexible design supports a wide range of hydraulic applications. -
5 GPM Hydraulic Flow
Provides steady hydraulic output for many field and mobile equipment needs. -
Spin-On Hydraulic Return Filter with Indicator
Helps simplify maintenance and monitor filter condition. -
System Relief Valve
Added protection for hydraulic components and safer operation. -
Large Hydraulic Oil Tank
Built with generous fluid capacity for dependable operation. -
Sight / Temperature Gauge
Makes it easier to monitor hydraulic fluid level and condition. -
12-Gauge Steel Tank Construction
Heavy-duty steel reservoir built for rugged work environments. -
Forklift Accessible
Easier to move, position, and install as needed. -
Free Standard Ground Shipping
Added value on a professional-grade hydraulic power unit.
Quick Specs
| Specification | Details |
|---|---|
| Model | HBHS300GXE |
| Shipping | Free Standard Ground Shipping |
| Engine | Honda GX390 / 390cc |
| Start Type | Electric Start* |
| Flow Rate | 5 GPM |
| Pump Displacement | 0.36 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORB / Outlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Hydraulic Tank Volume | Nominal: 9.7 gal. / Actual: 8.5 gal. / Usable: 5.75 gal. |
| Hydraulic Tank Material | 12 Gauge Steel |
| Tank Drain Port | 1/2" NPT |
| Hydraulic Valve Pressure | 3,000 PSI |
| Valve Type | Optional Kits Available |
| Valve Ports | Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed |
| Dry Weight | 240 lbs. |
| Dimensions (L x W x H) | 44" x 24.5" x 26" |
| Warranty | 2 Years |
Ideal For
- Trailer-mounted hydraulic systems
- Remote job sites without air or electrical power
- Single-acting cylinder applications
- Double-acting cylinder applications
- Contractors and field equipment operators
- Mobile hydraulic power needs
**Optional Rush ProcessingĀ -Ā We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays).Ā Ā Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery.Ā If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.
Optional Add-Ons
Disclaimer: BraveĀ® and BraveProĀ® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
